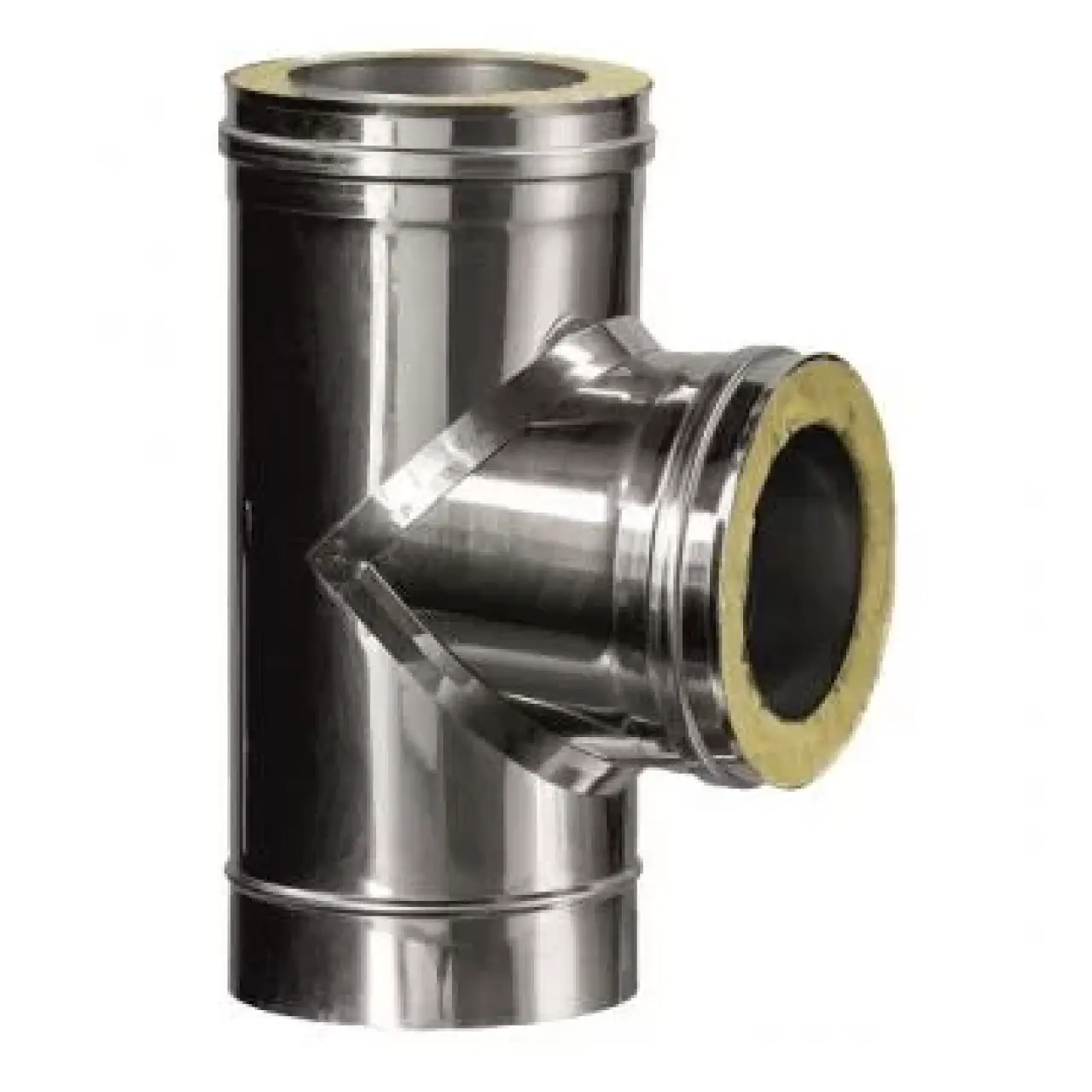

Double Wall Tee Module

Tee Connections are used to connect our flexible liner to the back of an appliance such as a stove or most commonly used to pass through a chimney thimble

The module is shaped by automatic cold press machinery without welding and constitutes the main body of the chimney.

The unique quick-connect clamp design allows the two parts of the tee to easily attach with a tight and secure seal.

Liner : 1.4404-1.4401 Stainless Steel (316L)
Dimensions : Ø100~1200mm
Liner Thickness :0,40~3mm
Pressure Segments :N1 – P1 – H2
Joints : Clamp-Gasket-Bellmouth
Corrosion : Vm
Welding : Continuous TIG
